Flat?Key Switch Lock
1.Product type：Key switch2.Item No：JK2801

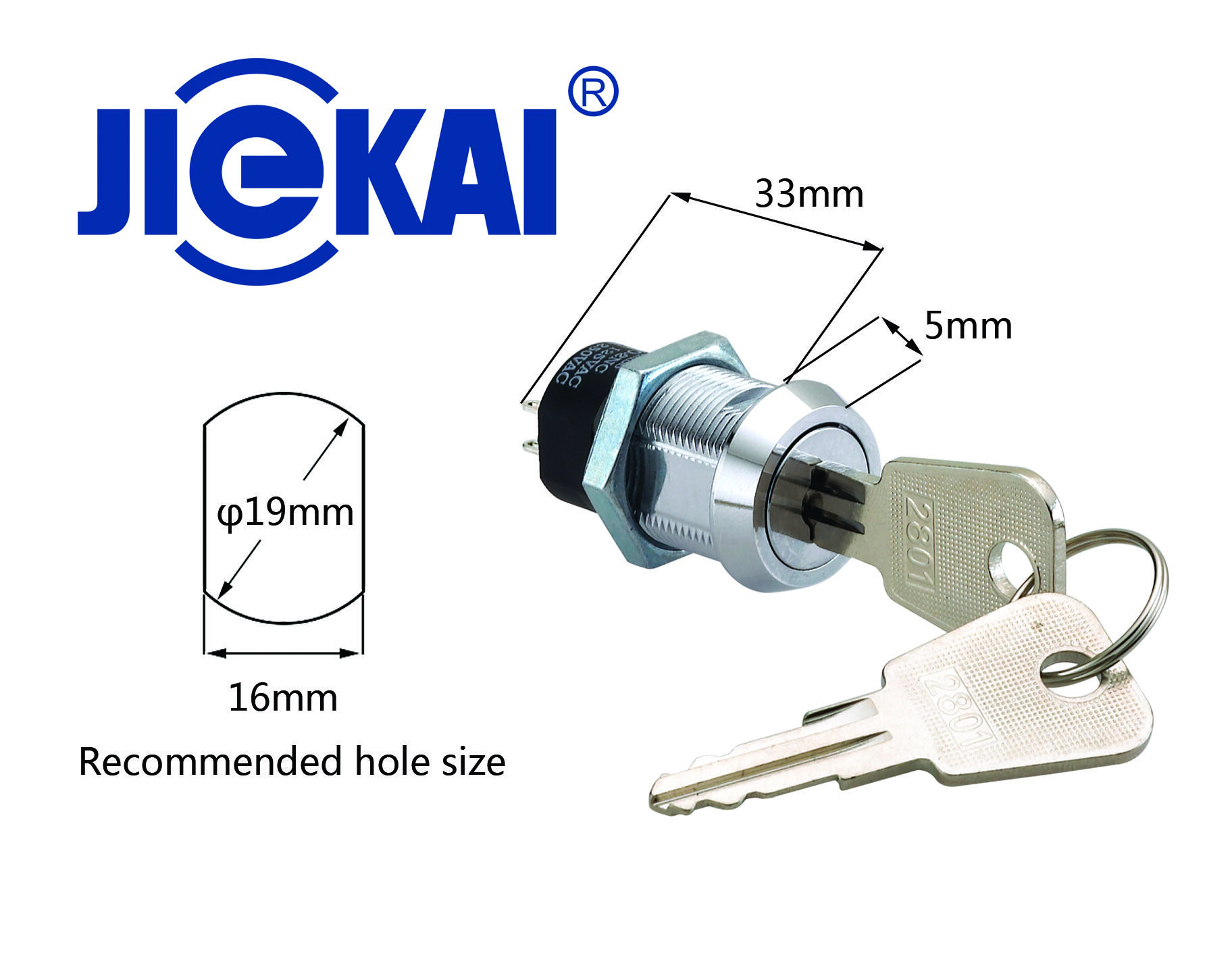

3.Recommended hole size：19mm
4.Lock material and finish：Zinc Alloy die casting housing and cylinder,chrome plated
standard
5.Key type,finish and pulls：5 pin tumbler mechansim,brass key,nickel plated
,key may be withdrawn in 1 or 2 positions

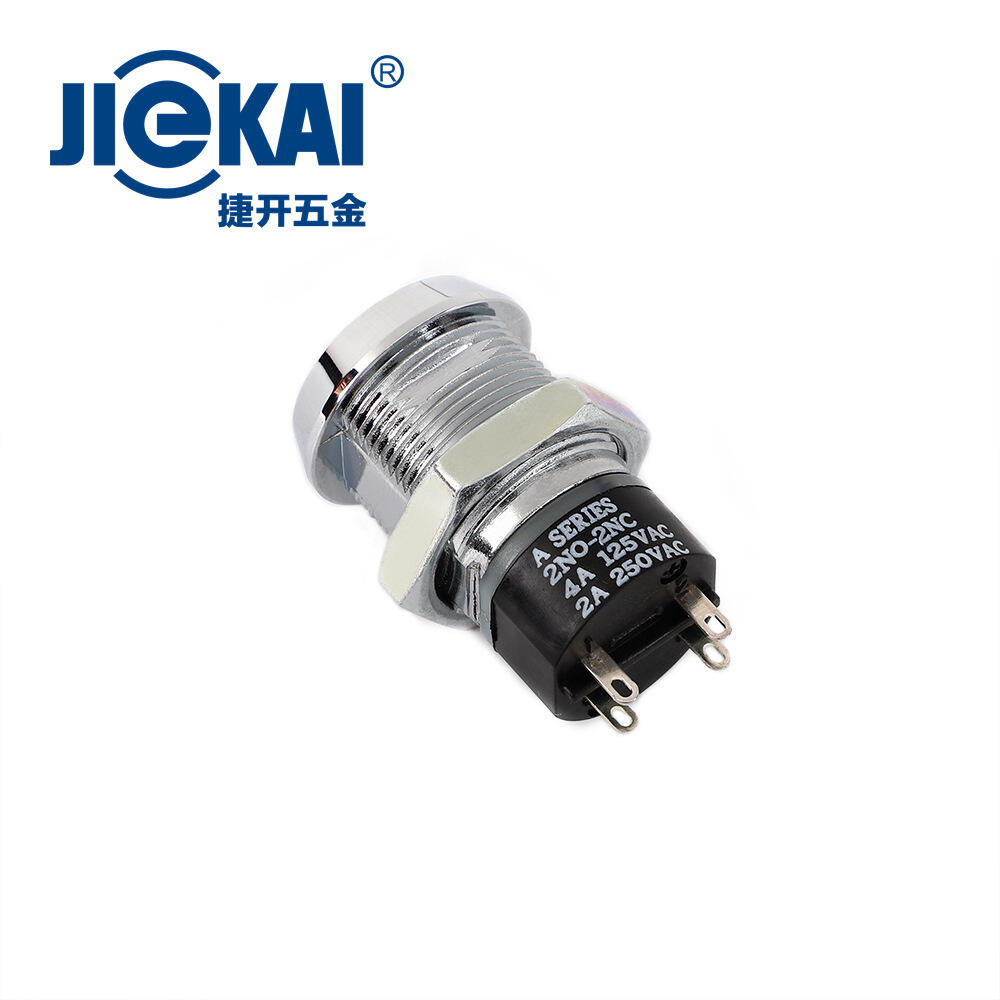

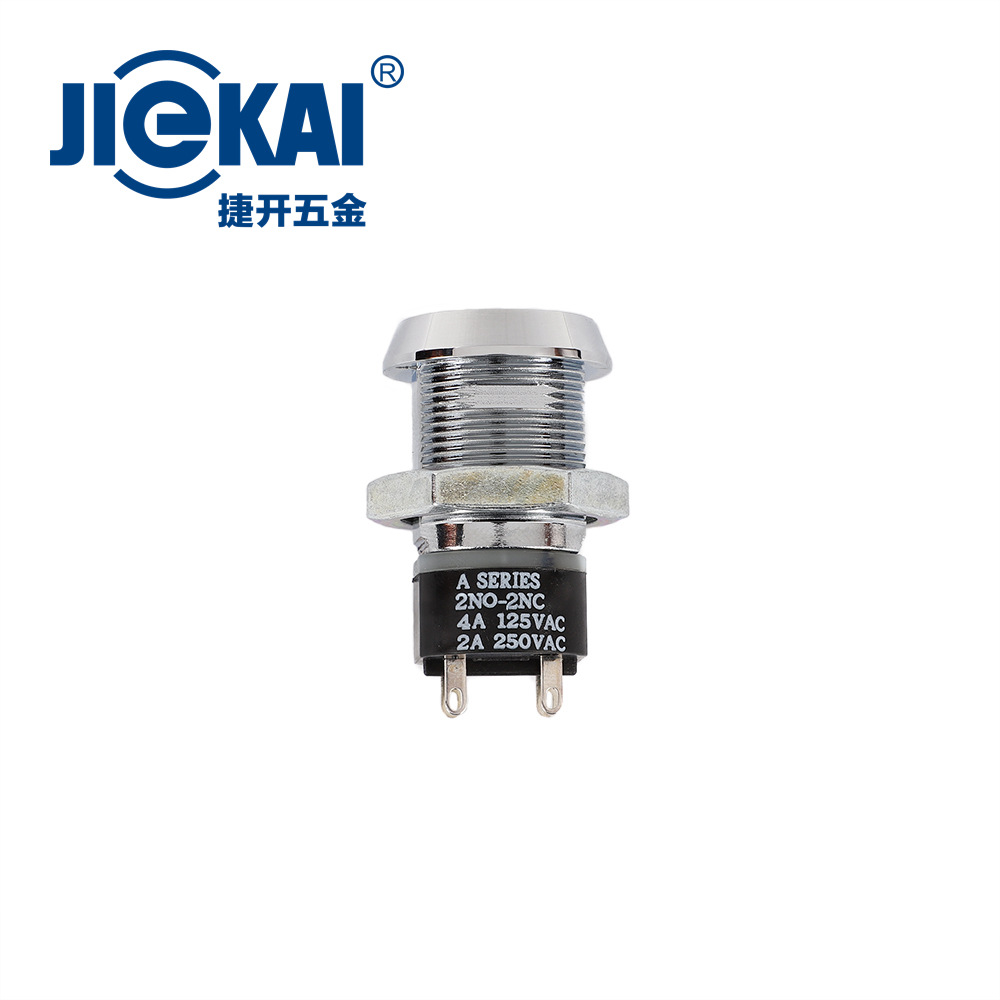

6.Terminal and conduction way：4 silver plated terminals,OFF-ON/ON-ON
7..Key combination：KA#2801 ???KD50
8.Fixed way：nut
9.Certification：ROHS

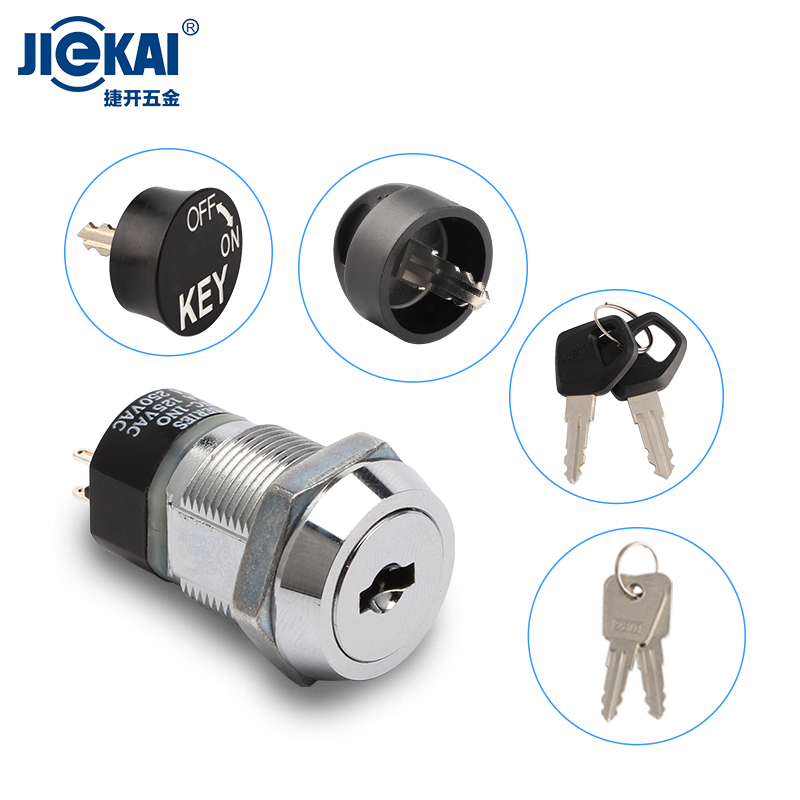

10.Remark：JK2801A-1 key with plastic cover

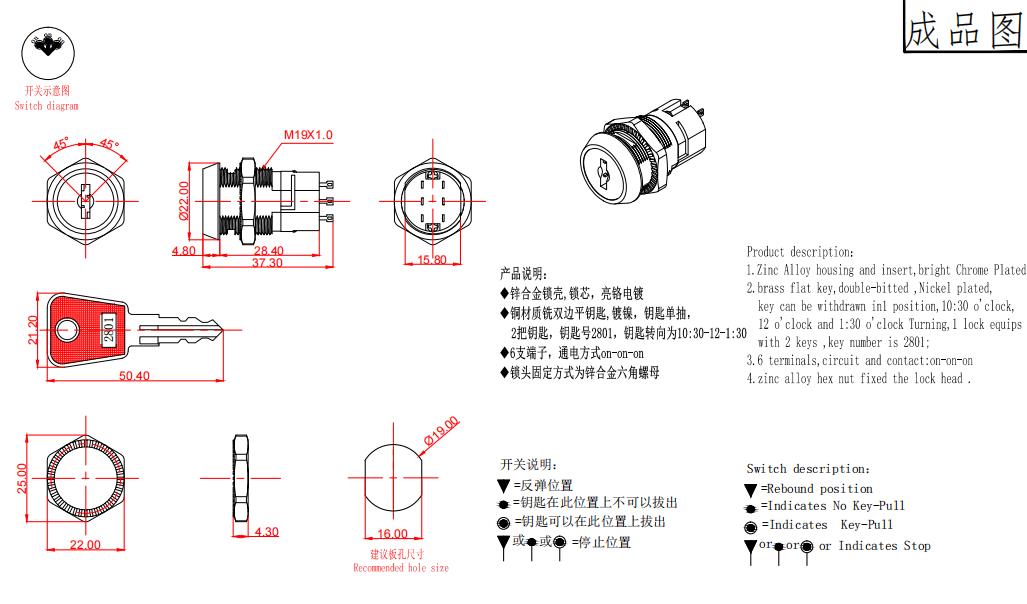

11.Specification form：
|
|
|
|
|
|
| ?↑ | ??→ |
| ||||||||
| 1 | JK2801A-1 | 2 | 2 | 4 | 1 | 90° | OFF | ON | DPST | ||||||||
| 2 | JK2801A-2 | 2 | 2 | 4 | 2 | 90° | OFF | ON | DPST | ||||||||
| 3 | JK2801B-1 | 2 | 2 | 4 | 1 | 90° | ON | ON | SPST | ||||||||
| 4 | JK2801B-2 | 2 | 2 | 4 | 2 | 90° | ON | ON | SPST |
