JK517 Cam lock With Flat key

19mmStandard Die-cast Cam Lock

1. Product type：Cam lock
2. Item No.：JK517
3. Recommended hole size：19MM
4. LockMaterial and finish: Zinc alloy housing and cylinder,brightchrome plated.
5. Key type, finish and pulls: 7 dics tumbler mechanisms, Brass key. nickel plated, Key may be withdrawn in oneor both positions.
6. Fixed way（lock&cam): Nutmounted,Cam is fixed by screw.
7. L1 length：22mm
8. Cam length：Various cam configurations and rotations available.Cam can be customized.
9. Key combination:500KD

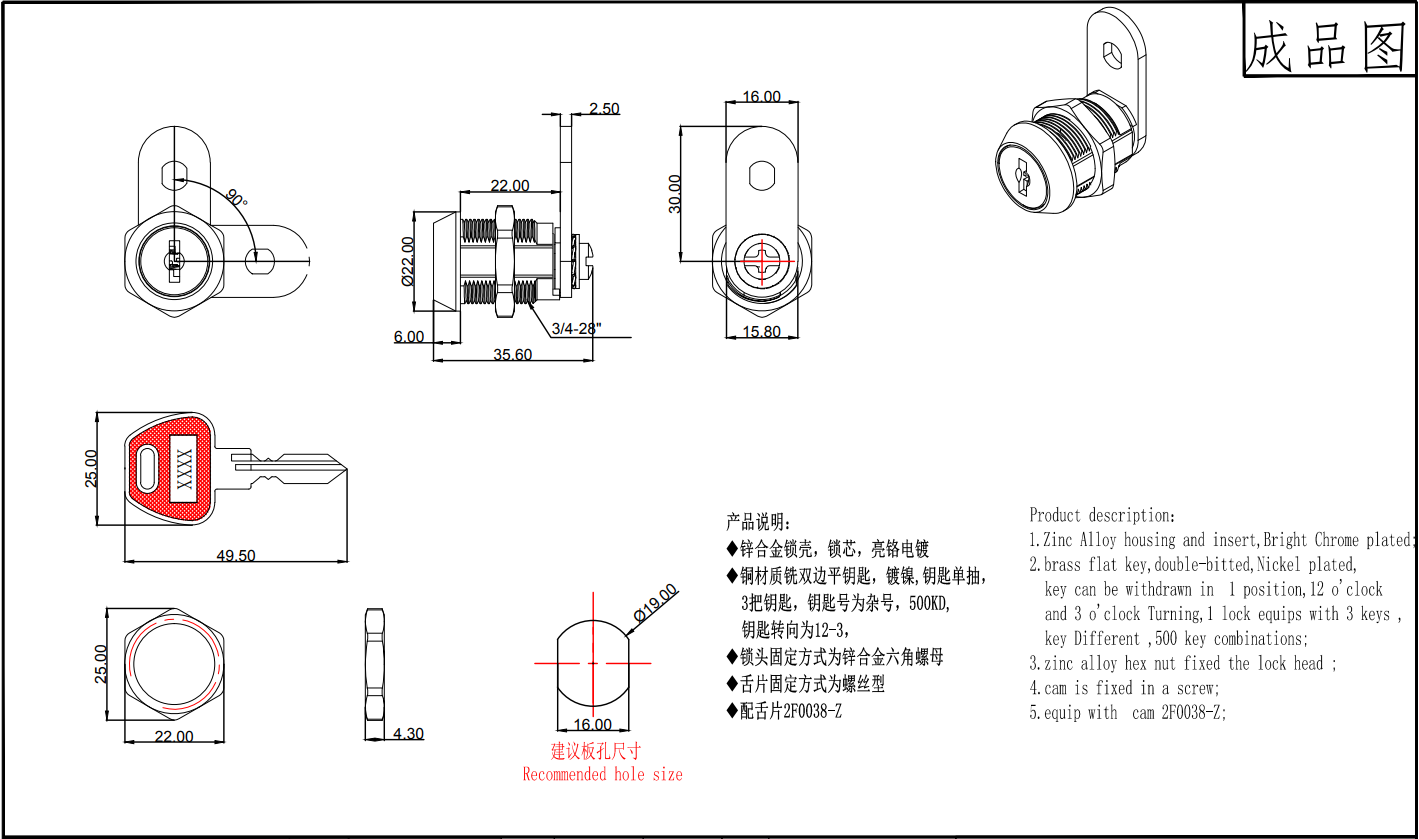

10. SpecificationForm：
